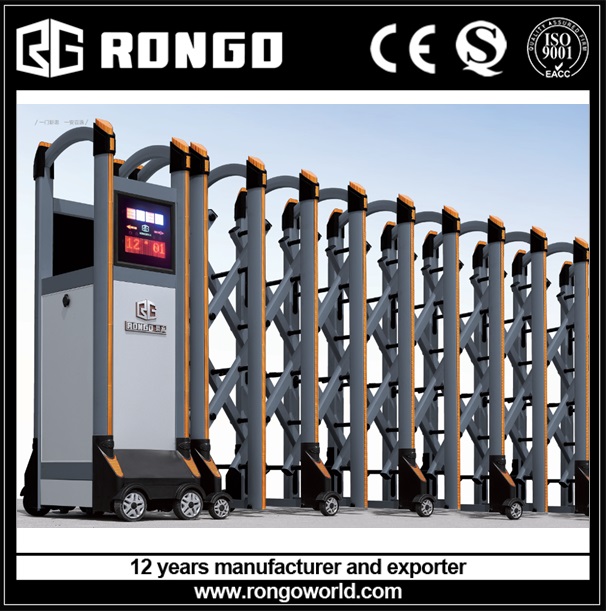

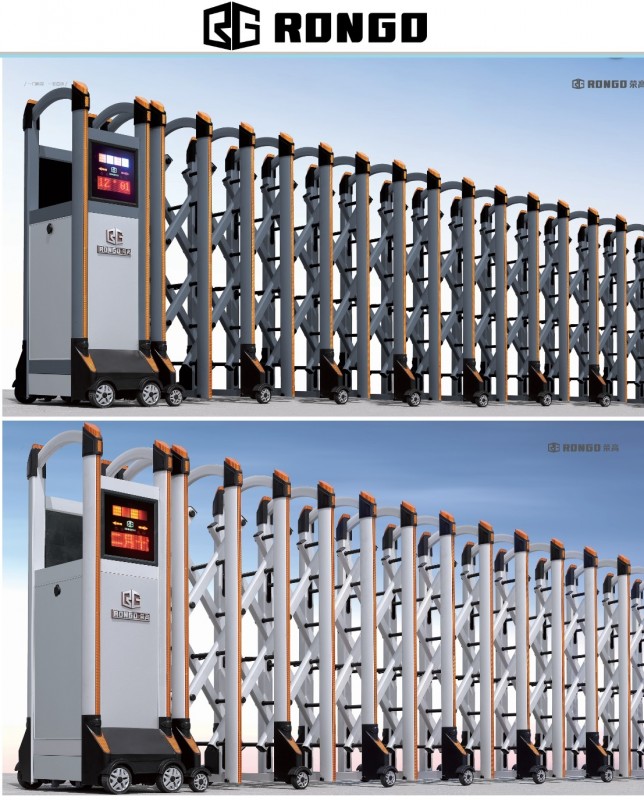

Aluminum alloy retractable door

1. Material:Aluminum alloy T6063
2. Main Tube: 50×30×T0.8mm
Cross Tube: 40×31×T1.0mm
3. Working Temperature:-25°C +85°C
4. Two fixed screen
5. Surface treatment: powder coated
6. Direction: Optional

SKU: HX-613 Category:

HX613

Parameter

1. Material: Aluminum alloy

2. Main Tube: 50×30×T0.8mm
    Cross Tube: 40×31×T1.0mm

3. Engine Voltage and Frequency:~ 220V ± 10% 50Hz

4. Working Temperature: -25+75°C

5. Operation Current≤2.5A×2

6. Remote control distance≥30m

7. Power: 370W/550W/750W, Moving speed: 17-19m/min

8. Standard height: 1.6m

9. color can choose : silver,black,red

10.Max length: 30m

11. Type of guiding track: No track, Single track, Double track

12. The unique infrared collision avoidance system ensures safety of passengers and vehicles by running backwards automatically at a distance 20-25cm away from a person or an object.

13. The alarm function works while someone climb the gate. (Optional)

14. Electronic soft startup strengthens operational smoothness by reducing rolling and inertial damage of the head.

15. Double self-lock to prevent any manual lifting.

16. Contact-free control in the whole circuit to ensure the system in safe and reliable operation.

17. Multi protection devices are designed to prevent the occurrence of car smashing.

18. Increasing safety and reliability of the motor by replacing the common temperature sensing protection with current sensing protection function.

19. Displaying words and time on LED, the words may be input up to 1000 words according to customers requirements and language. (Optional)
